CHOOSING THE CORRECT SCREW

How To Measure

Head Types

Drive Types

Tamper-Pruf

Self-Drill Point Numbers

Sharp Point Types

Thread Types

Color Guide


  Length of Fastener

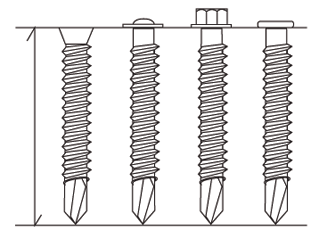

Screw Length

  Screw Sizes
  Nominal Size   Basic Screw Diameter
  0   0.600
  1   0.0730
  2   0.0860
  3   0.0990
  4   0.1120
  5   0.1250
  6   0.1380
  7   0.1510
  8   0.1640
  10   0.1900
  12   0.2160
  1/4   0.2500
  5/16   0.3125
  3/8   0.3750
  Note: Zeros preceding decimal and in the fourth decimal place have been omitted.



  • Screws can be purchased in any multiple of 100.
  • Bonded Neoprene washers can be assembled on most screws.
  • Screws can be painted any color
    with a provided color chip.
  • Case quantities may vary.





  Steel Metal Gauge
  Nominal
Guage		 Minimum Thickness (inchees) Mils Maximum Design Thickness (inches)
  26 0.0163 16 0.0172
  25 0.0179 18 0.0188
  22 0.0269 27 0.0283
  20(drywall) 0.0296 30 0.0312
  20(structural) 0.0329 33 0.0346
  18 0.0428 43 0.0451
  16 0.0538 54 0.0566
  14 0.0677 68 0.0713
  12 0.0966 97 0.1017
  10 0.1180 118 0.1240
  For SI: 1 inch=25.4mm 1 mil=0.0254
Design Thickness=M
